Antennas

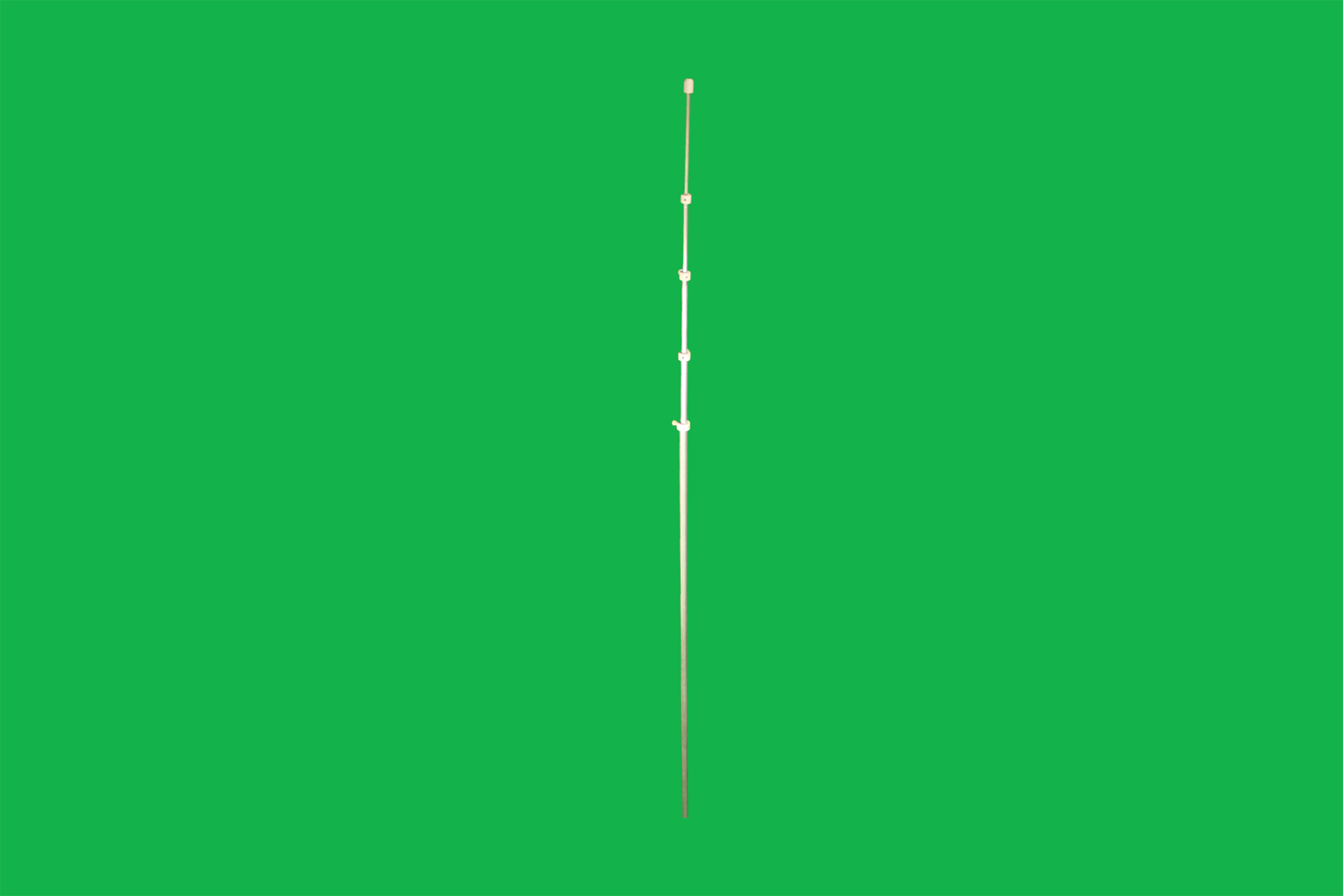

EZ-Stinger

The EZ-Stinger is 51 inches long when collapsed and 17.4 feet long when fully extended. This range covers all bands from 6 meter through 20 meter.

With the addition of the EZ-Slider 40M/30M loading/matching coil (part number VLC-40/30M-1.0), the 40 meter and the 30 meter bands can be covered.

With the addition of the EZ-Slider 80M loading/matching coil (part number VLC-80M-1.0), the 80 meter band can be covered.

EZ-Stinger Instruction Manual PDF

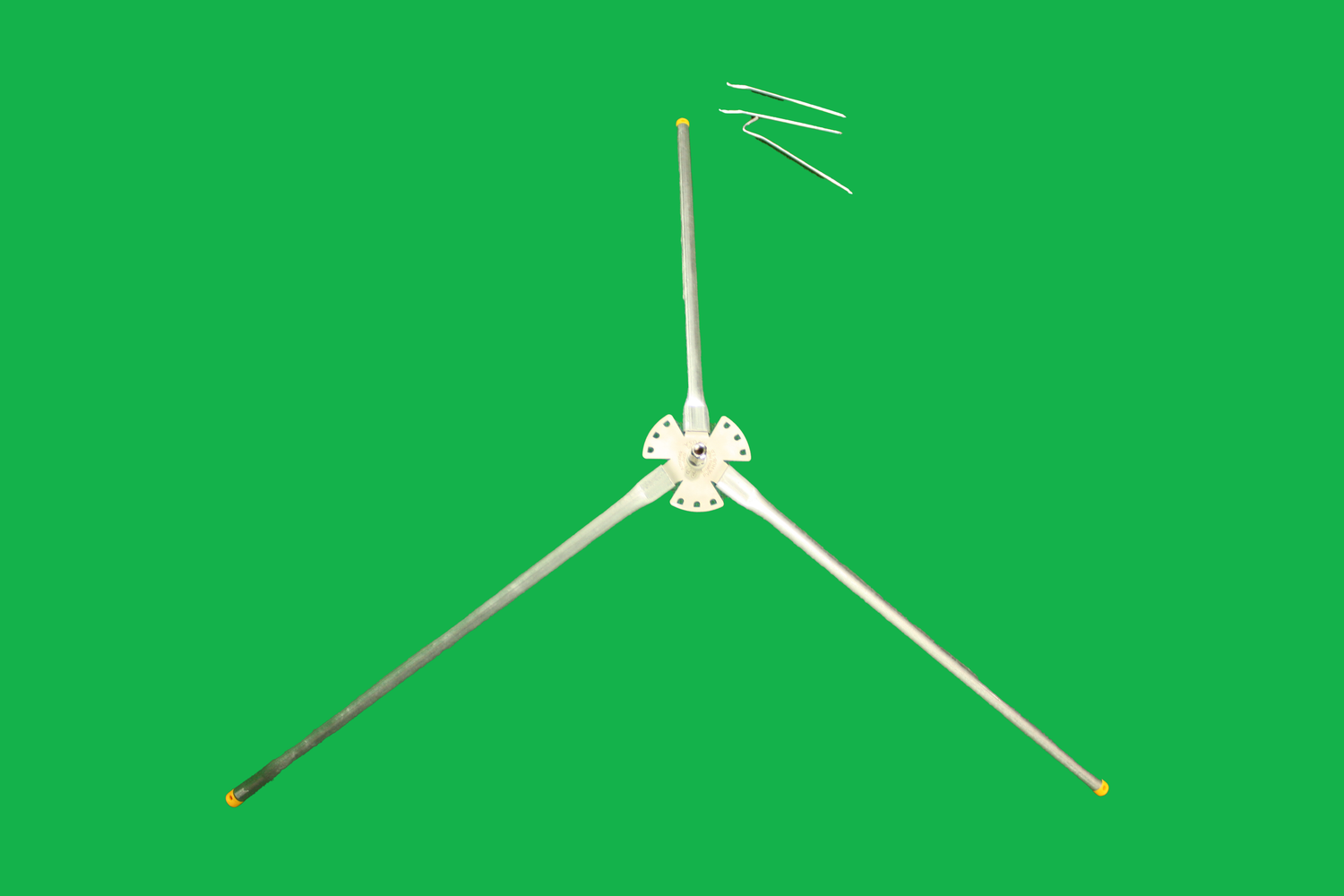

EZ-Tripod

The EZ-Tripod is an easy to assemble tripod antenna base that can be used with the EZ-Stinger or most other whip antennas.

The stainless steel hub and galvanized steel legs make the EZ-Tripod virtually weatherproof.

The EZ-Tripod is available with 3 different leg lengths: 12 inches, 18 inches, and 24 inches.

The hub has holes for connecting ground screens or radials.

EZ-Tripod Instruction Manual PDF

EZ-Radial

With the addition of the elevated EZ-Radial, the EZ-Stinger can be made to radiate with several dB of gain in the direction of the radial. A front-to-back ratio of almost 5 dB is achieved.

EZ-Radial Instruction Manual PDF
